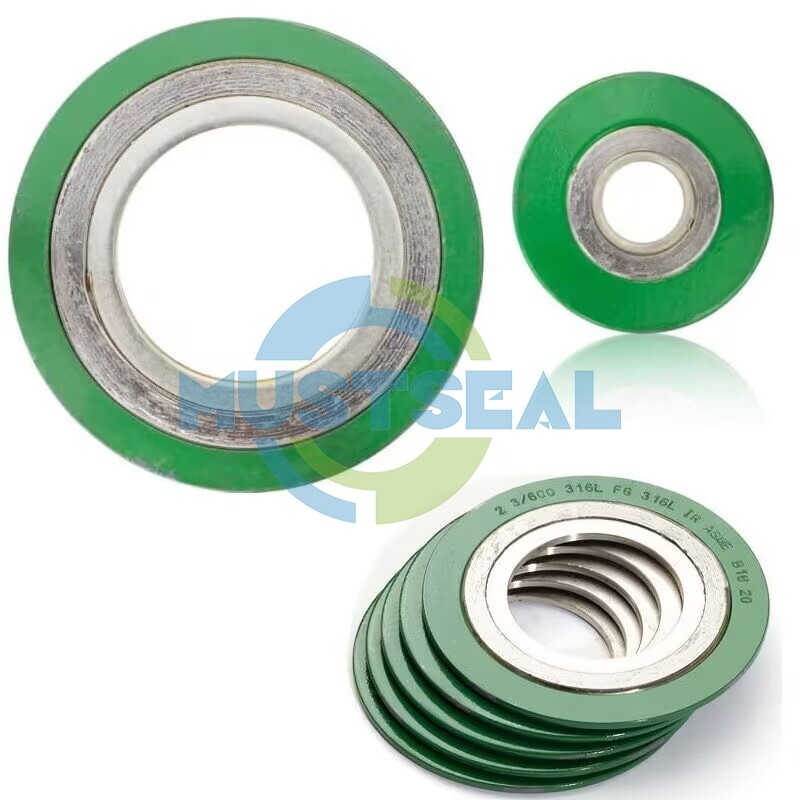

Spiral Wound Gasket
Model:MT-G101

BrandName : MUSTSEAL
MOQ : Sample Order,Accept OEM &ODM
Certificate : ISO 9001:2008
Payment : T/T, Paypal, Western Union,L/C, Alibaba Pay
Delivery Date: 14 Working Days

Inquiry

Specification

Description:Spiral Wound gasket is formed of V-shaped metallic stripe and soft non-metallic filler by means of piled, spiral wound and connected its end and beginning by dot welded. Depend on its excellent compression resilience it is suitable for sealing spots where the alteration of temperature and pressure are frequent.


Spiral Wound gasket can be used as the static sealing element of pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc. It has been widely applied in the fields of petrochemical, mechanical manufactory, power station, metallurgy, shipbuilding, medical and pharmaceutical nuclear power station and navigation, etc.


APPLICATION:

We can produce according to ASME, BS, JIS and EN(DIN) standards or client request.

ProductsStyleFlangeFor example
Basic type SWG101BTongue and Groove304/PTFE
SWG with inner ring101IRMale and Female304 304/FG
SWG with outer ring101CRRaised faceFlat face304/ASB CS
SWG with inner& outer rings101IC304 304/FG CS
SWG for heat exchanger101HHeat exchanger304/FG with 1 bar of DJ
Special shape SWG101SSpecialOval



MATERIAL:

StyleStructureHoop materialFiller materialInner & outer ring materialNormal thickness mm
GasketInner & outer ring
101BWithout rings304(L); 316(L)321; 317L31803, Monel, Ti, Ni, INC etc. Graphite, PTFE, Non-asbestosMica, etcCS, 304(L), 316(L), 321; 317L31803, Ti, Ni, INC, Monel, 3.2mm 4.5mm(0.175”)  6.4mm2mm 3mm(1/8”) 4mm
101 IRWith inner ring
101 CRWith outer ring
101 ICWith inner & outer rings

 Color cord as ASME B16.20 on request.


Our Factory

ABOUT US

Mustseal Packing & Gasket Co.,Limited

Mustseal Packing & Gasket Co.,Limited belongs to Xianghong Group,Mustseal is our factory, Xianghong as our exporter, Mustseal is a China famous brand which founded from 2003, We are professional in producing Gland Packing,Gaskets, Gasket Sheets, Graphite,PTFE,Ceramic fiber,Glass fiber products.



Stable quality, competitive price is our pursuit,with strict quality control to ensure the stable-performance. We have high efficiency supply chain and long term cooperation with shipping company, thus rapid production and fast delivery are assure.



With advanced work line,had established good cooperation with customers more than 120 countries from America countries,Europe, Africa, Asia, the middle east,We make sure to provide durable quality, better price and welcome new customers to establish long term cooperation

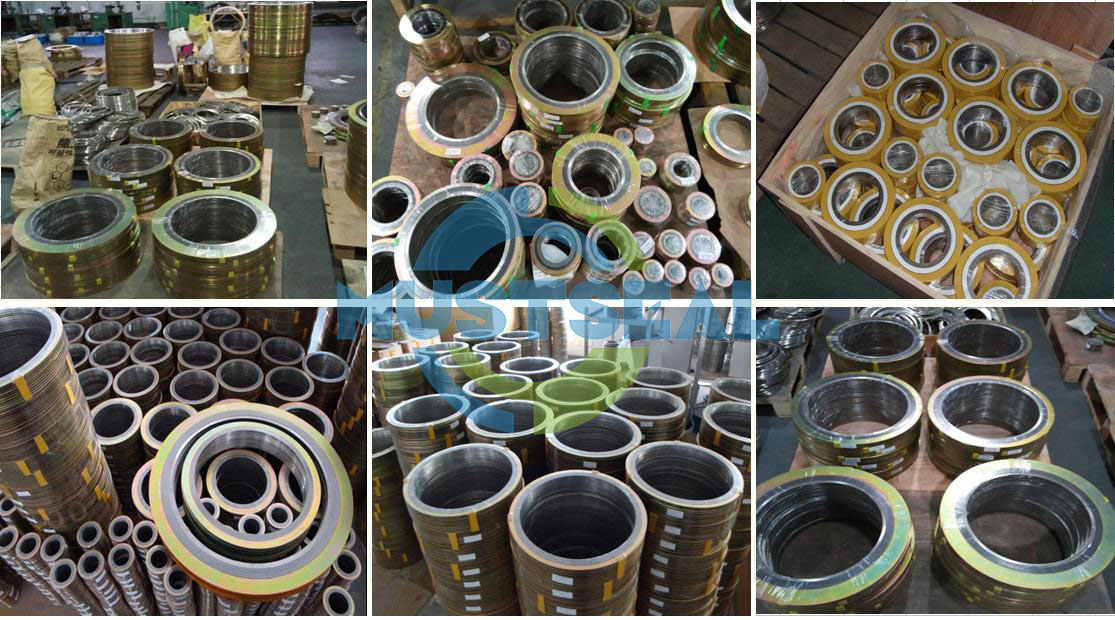

Workshop

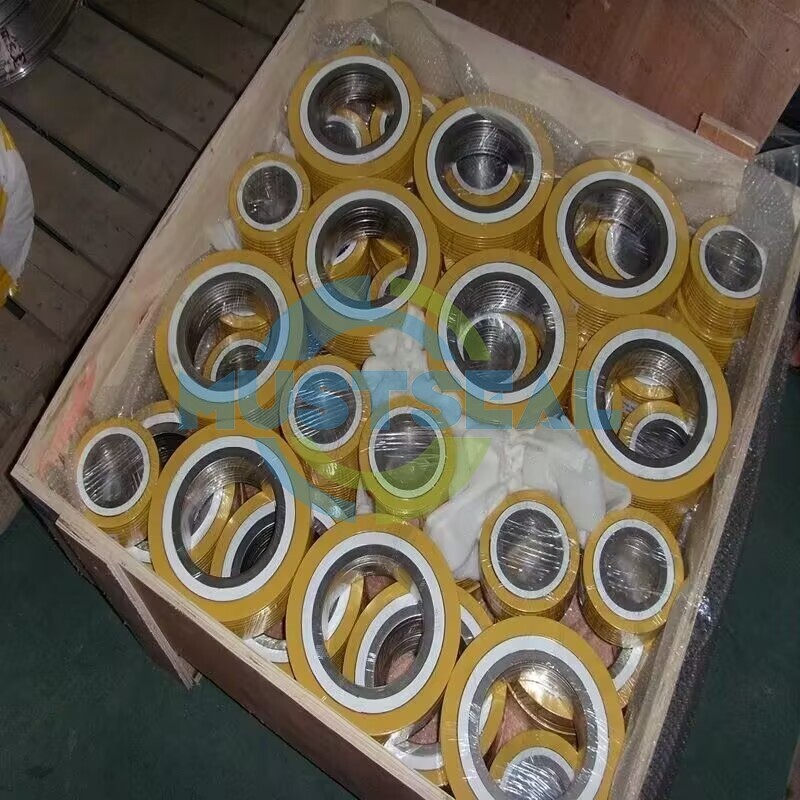

Packing & Delivery
