Description:

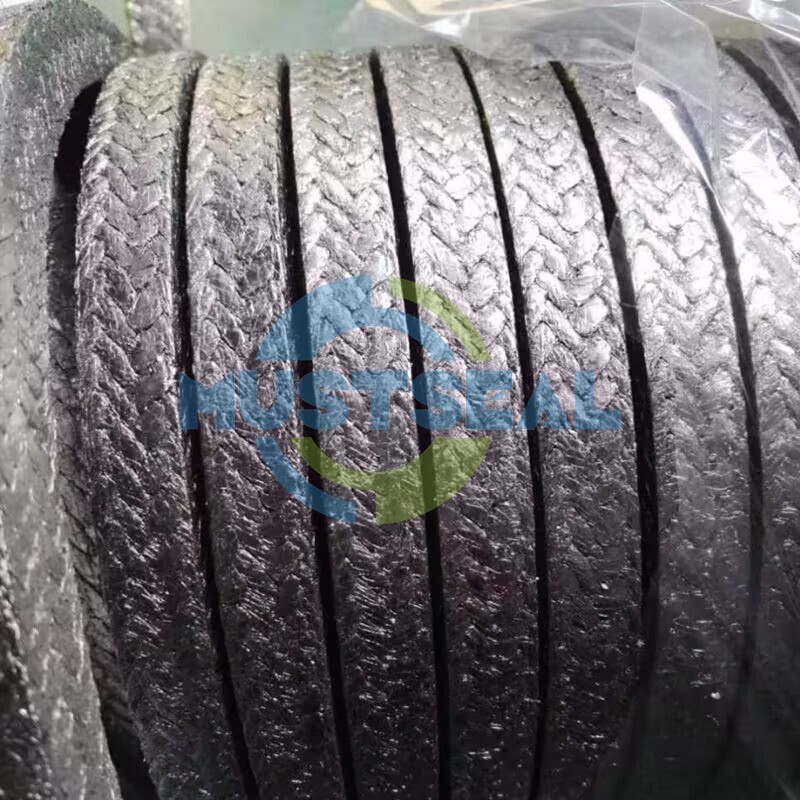

Graphite Packing reinforced with Inconel wire is braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire. It retains all the inherent benefits of 501 pure graphite packing, good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength, Normal for valve with high pressure. Other metal materials, nickel, stainless steel etc. on request.

CONSTRUCTION:

Graphite Packing with Inconel Wire and Corrosion Inhibitor

Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.

APPLICATION:

It is a multi-service packing capable of a wide variety of uses throughout a plant. It is particularly suited for use in high temperature, high pressure steam service. In addition, it can also handle most chemicals, acids and alkalis. It is excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.

Precaution: in oxidizing environment.

PARAMETER:

PACKAGING:

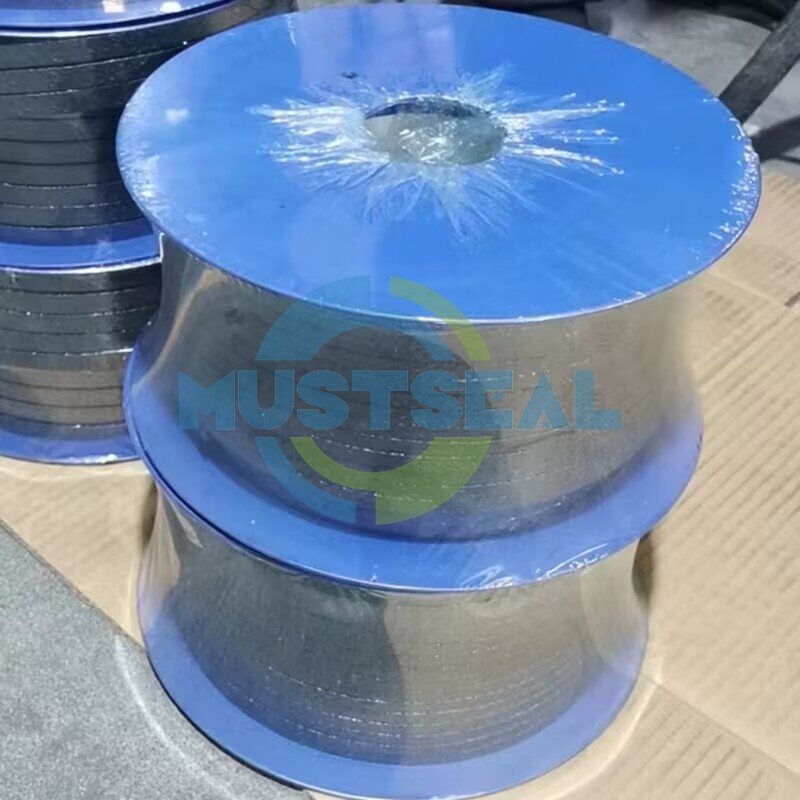

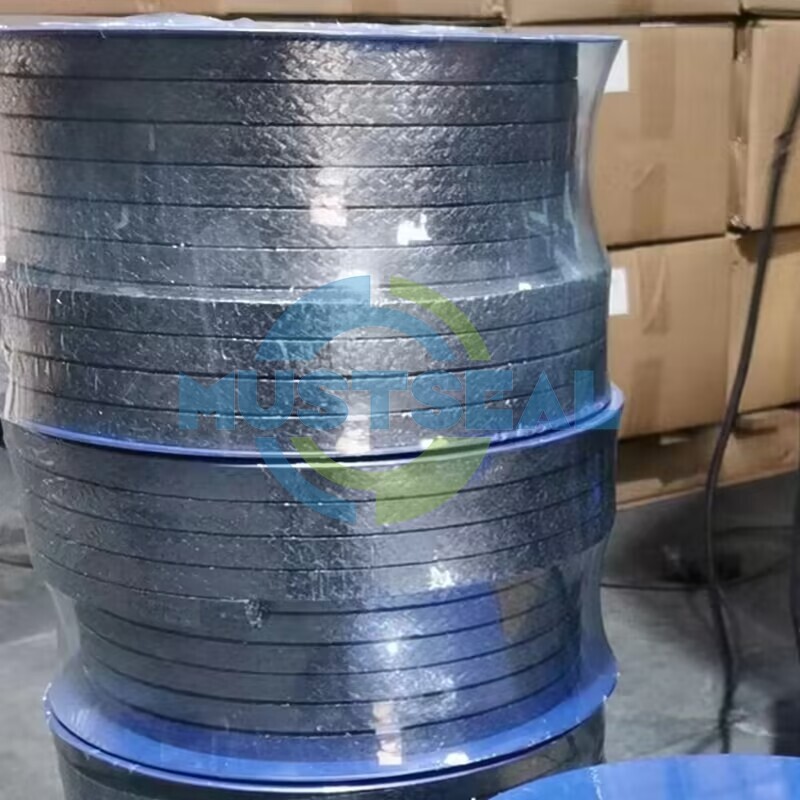

in coils of 5 kg, other package on request.
